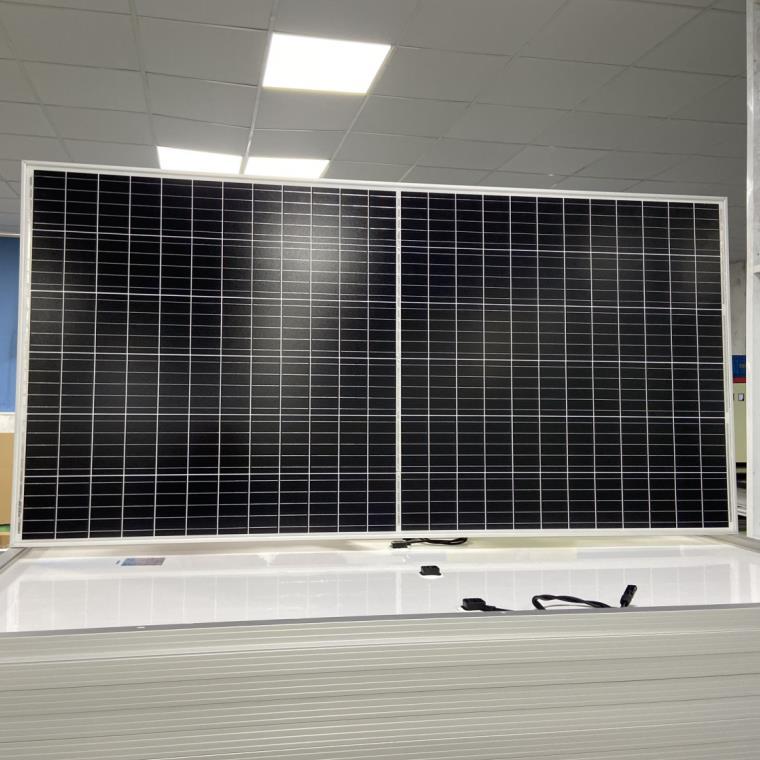

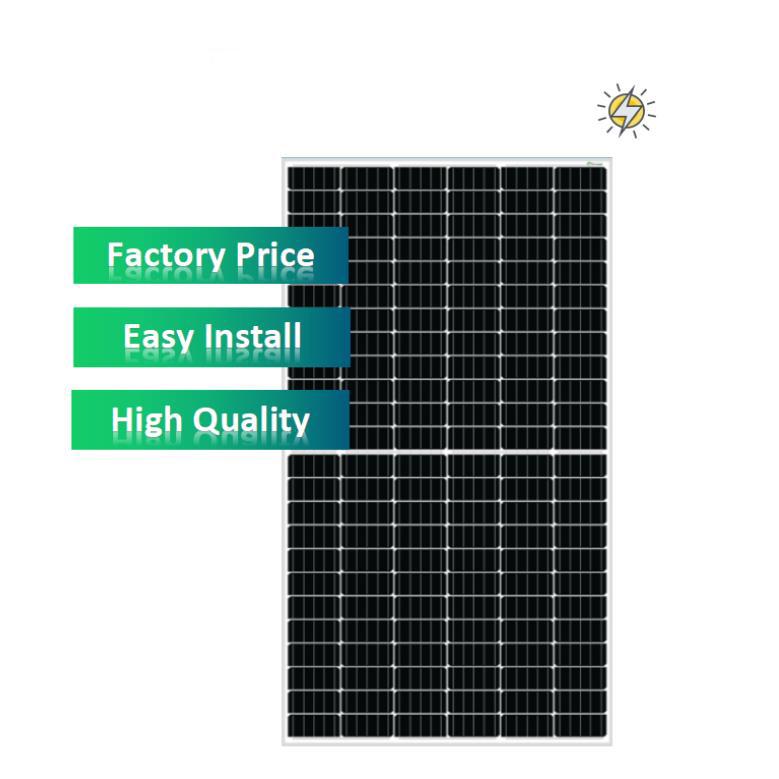

455W Solar Panel PV 144 Cells Half Cut Mono Module Prices

455W Half Cut Panel
  • Item NO.:

    ETHM 455W
  • Payment:

    TT/LC/Credit Card etc
  • Market Price:

    $0.23
  • Product Origin:

    China
  • Color:

    Sliver/Black Frame
  • Shipping Port:

    Xiamen/Ningbo/Shanghai Port
  • Lead Time:

    10-15 Working Days
  • Product Detail

455W Solar Panel PV 144 Cells Half Cut Mono Module Prices

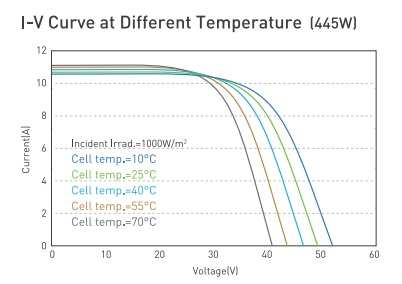

Product Parameters




Electrical Characteristics
Model Number
435W
445W
450W
455W
Testing Condition
STC
NOCT
STC
NOCT
STC
NOCT
STC
NOCT
Maximum Power (Pmax/W)
440
326.0
445
329.7
450
333.4
455
337.1
Open Circuit Voltage (Voc/V)
48.9
45.6
49.1
45.8
49.3
46.0
49.5
46.2
Short Circuit Current (Isc/A)
11.46
9.24
11.53
9.30
11.60
9.35
11.66
9.4
Voltage at Maximum Power (Vmp/V)
41.1
38.0
41.3
38.1
41.5
38.3
41.7
98.5
Current at Maximum Power (Imp/A)
10.71
8.59
10.78
8.64
10.85
8.70
10.92
8.75
Module Efficiency(%)
20.2
20.5
20.7
20.9
STC (Standard Testing Conditions): Irradiance 1000W/m², Cell Temperature 25 ℃, Spectra at AM1.5
NOCT (Nominal Operating Cell Temperature): Irradiance 800W/m², Ambient Temperature20℃, Spectra at AM1.5, Wind at 1m/S
Test uncertainty for Pmax: ±3%

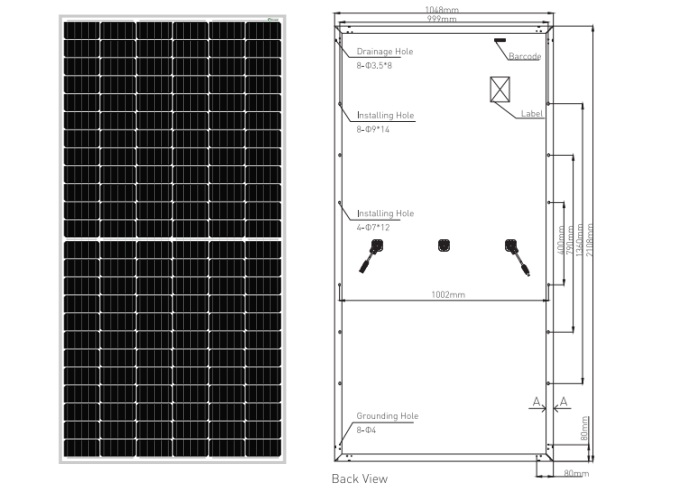

Product Detailed

Solar panels

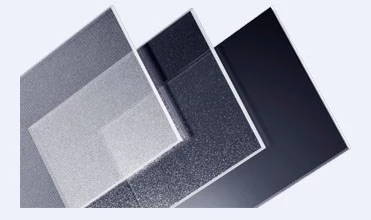

Tempered Glass


* 12% Ultra Clear Tempered Glass.

* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance

* High mechanical strength

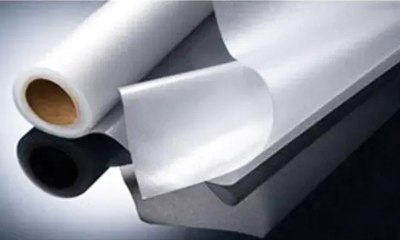

EVA


* >91% Higher Transmittance EVA,


* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Solar panel material

Solar panel home

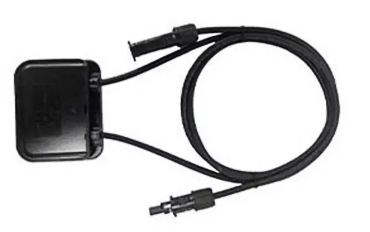

Junction box


Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level

Heat Dissipation Long service life

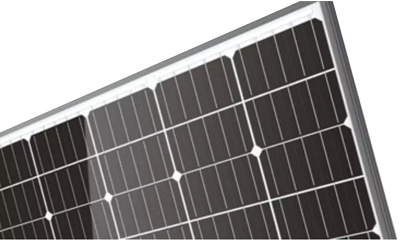

Mono Half Cells


* PERC Half Cells

* Higher Power Output

* Less Shading Effect

* Appearance Consistency


Inverter with solar panel
Solar panel connectors

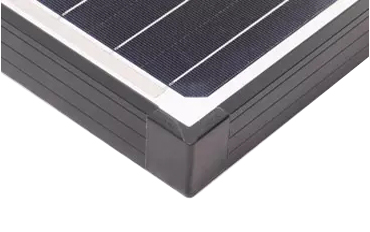

Frame


* Aluminum Alloy Frame

* 120N Tensile Strength Frame

* 110% Seal-lip Design Glue Injection

* Black/Silver Optional

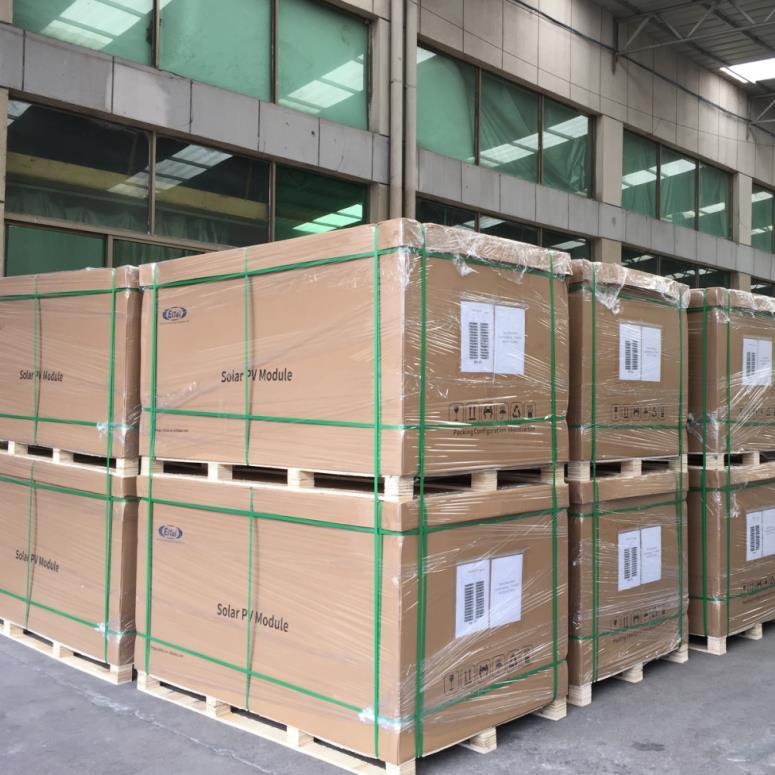

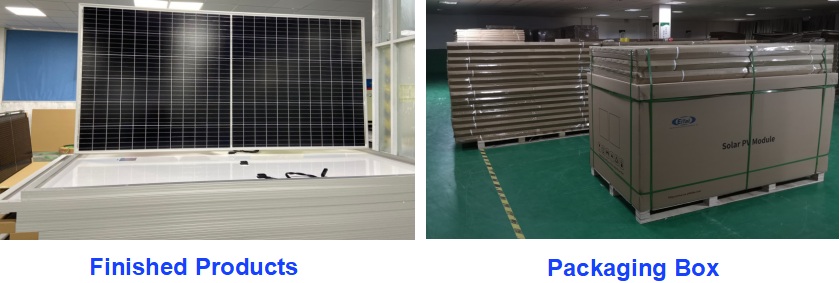

Product packaging

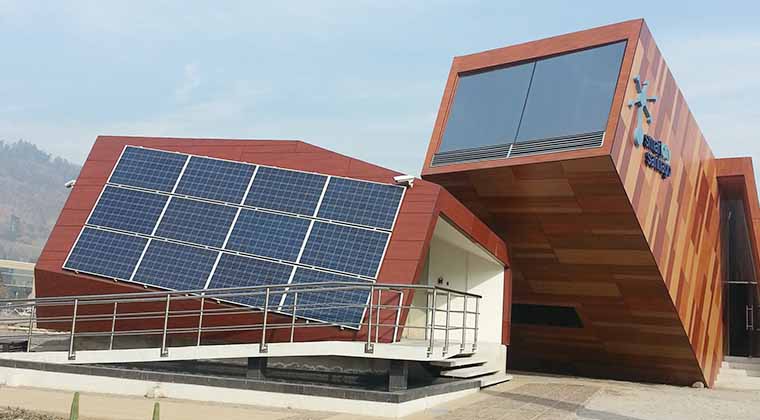

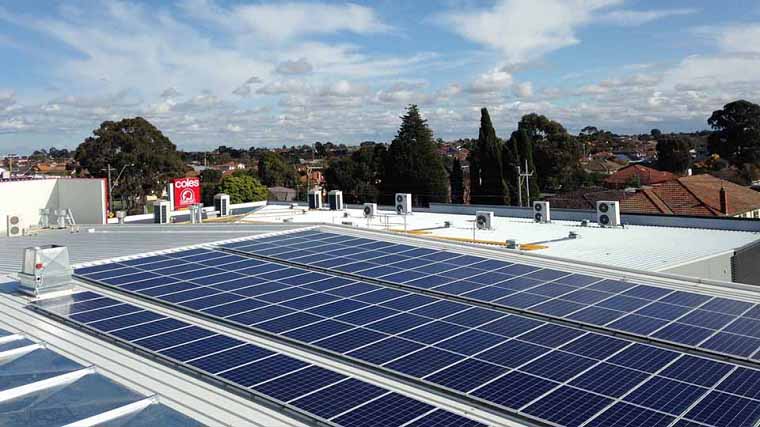

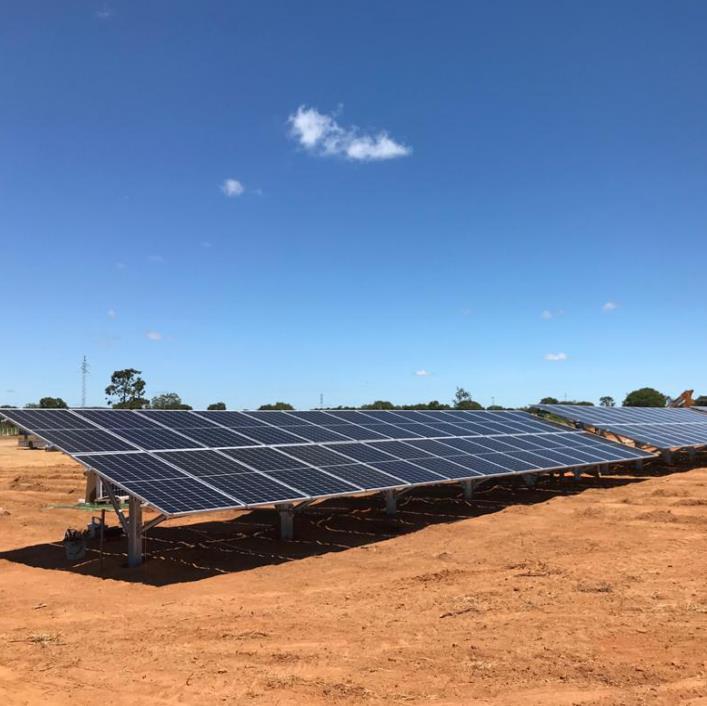

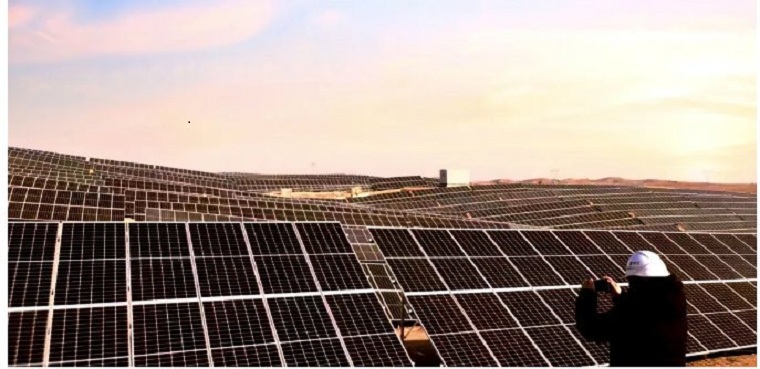

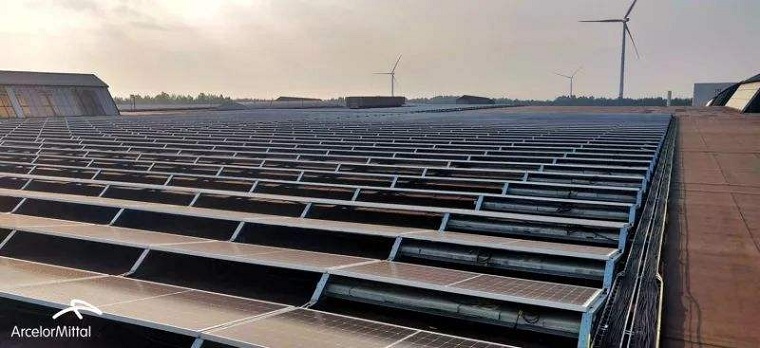

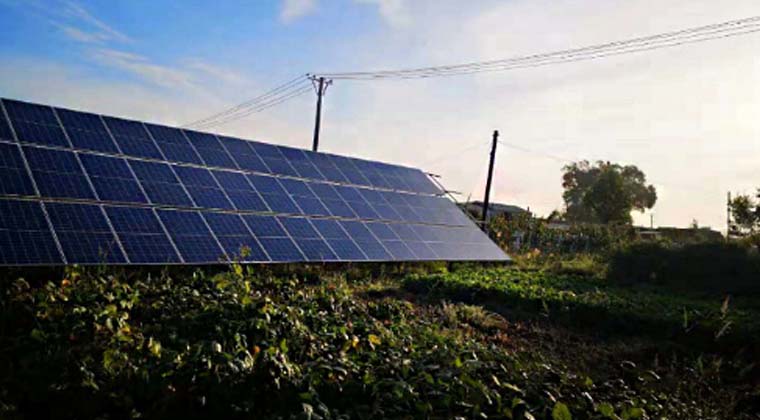

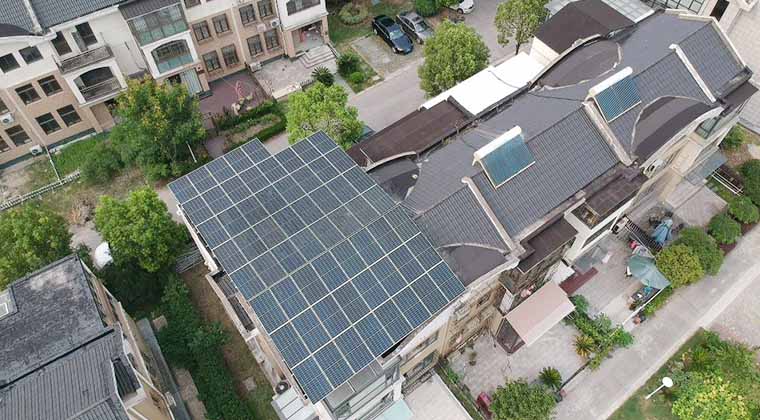

Product Application
