5KW Hybrid Solar Power Systems

Commercial Hybrid grid Solar System Single Phase Solar Panel Europe Ground Solar Plant with Ground Mounting, Roof Mounting, Carport Mounting


  • Item NO.:

    Hybrid System 5kw
  • Payment:

    T/T, L/C, Visa/ MasterCard, etc.
  • Product Origin:

    China
  • Shipping Port:

    Xiamen, Ningbo, Shenzhen, etc.
  • Lead Time:

    15 Days
  • Certificate

    CE
  • Output Type:

    Single Phase
  • Warranty:

    10 years
  • Power range:

    5KW
  • Product Detail

Eitai Hybrid Solar System Power 5kw Home Solar Panel System For Home Use with Battery Charger


Product Information:

Place of Origin:

Fujian, China
Brand Name:
mailely

Model Number:

3-20KW Hybrid Solar System

Application:
HOME, Commercial, Industrial

Solar Panel Type:

Monocrystalline Silicon, Polycrystalline Silicon

Battery Type:

Lead-Acid, Lithium Ion, Lithium Battery

Mounting Type:
Ground Mounting, Roof Mounting, Carport Mounting
Controller Type:

MPPT, MPPT/PMW

Load Power (W):
3KW-20KW
Output Frequency: 50-60HZ
Product name:
Hybrid Solar PV Power System
Inverter type:
Growatt Hybrid Inverter
Warranty:
10 years
Solar cell:
Mono/Poly
Frequency:
50/60hz
Output Voltage (V): EU: 230/400V US:120/240


5KW Hybrid Solar Power System Components:


5KW Hybrid Solar Power System Components
Item
Model
Description
Quantity
1
Solar Panel
Mono 380W or Poly 380W solar panel
16pieces
2
DC Switch
2P125A DC550V
1 pcs
3
Growatt Hybrid Inverter
SPH 5000
1 set
4
Battery and battery structure ,DOD 70%
12V 250AH
4 pcs
5
PV Cable-Module to DC Combiner
1x4mm2
200m
6
BVR Cable (For Battery)
BVR-450/750V-16
20m
7
Connector
MC4 Compatiable
6m
8
Battery Cable-Battery Box to Battery
BV/RVV1*50mm
20m
9
Battery Box (Breaker, SPD)
2in1out
1 set
10
AC Combiner Output Box, 2in 1 output
230V,50HZ, Breaker
1 set
11
mounting structure、clamp、Screws
Galvanized Steel or Alluminum Alloy
1 lot
12
PV TOOLS

1 set



Solar hybrid power systems

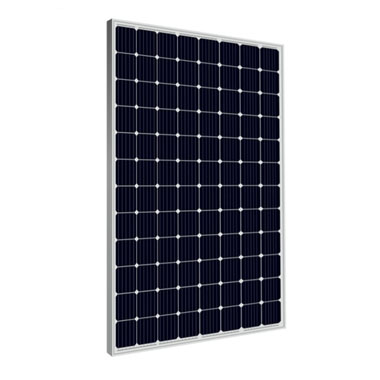

Solar Panel


> Optional Mono/Poly Blue/Black Panels

> 25 years Warranty

> Excellent mechanical load resistance

> PID Resistant,High salt and ammonia resistance

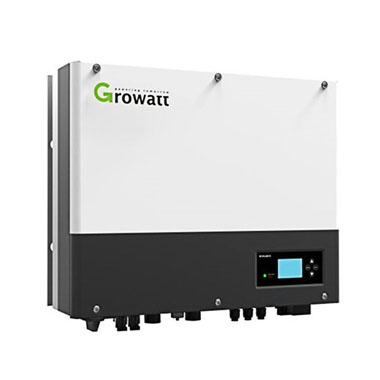

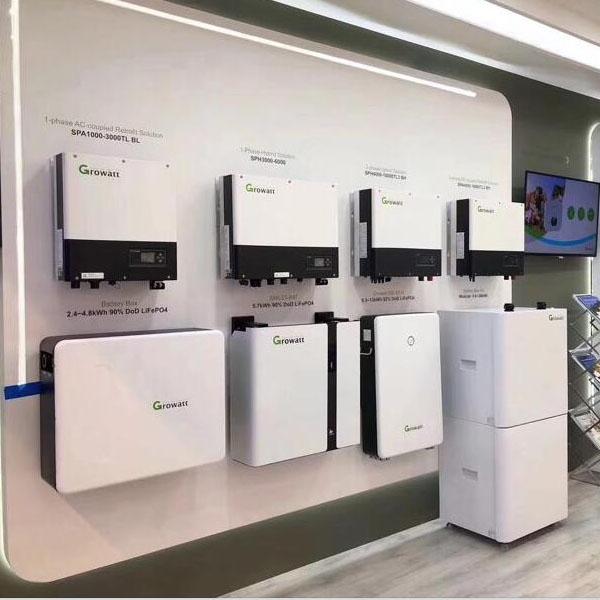

Off Grid Solar Inverter


> Brand:Growatt


>5 years standard warranty

>Support Working in Parallel

>Max.Efficiency 99.7%

>Integrated DC switch for added

>safety protection

>With WIFI Monitoring Device


Hybrid solar wind power generation system

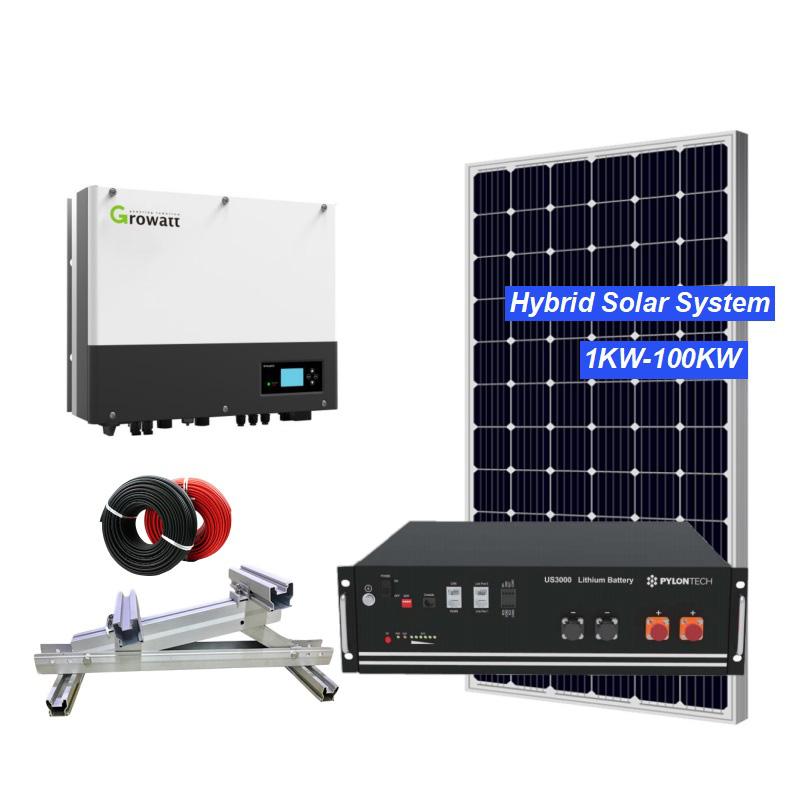

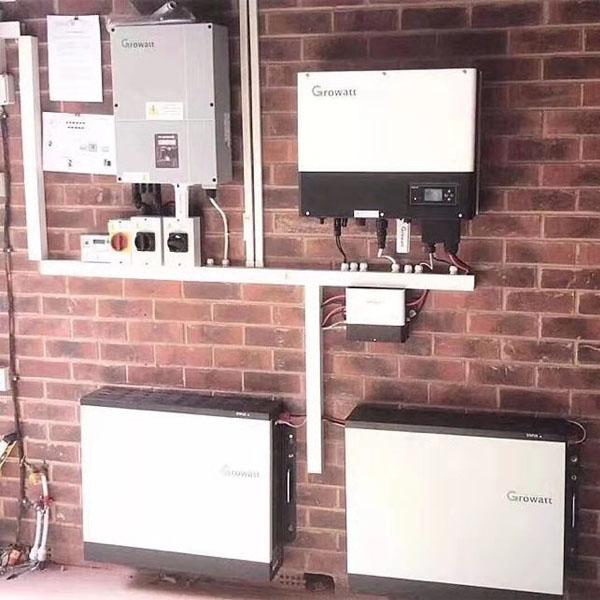

5KW Hybrid solar system

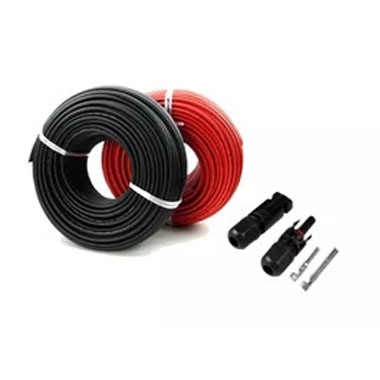

PV Cables& Connector



>DC Cable 4mm/ 6mm

>AC Cable

>MC4 Standard Connector

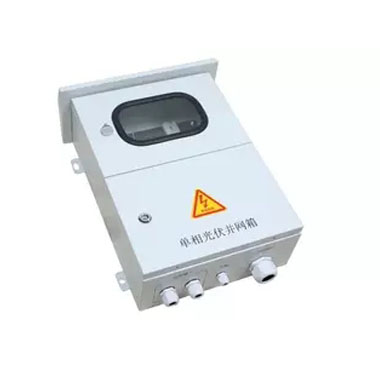

 AC Combiner Box



 >  Include FUSE,SPD,  Leakage

     Breaker etc.

 >  Protect Solar System


Solar wind hybrid controller
Hybrid power system

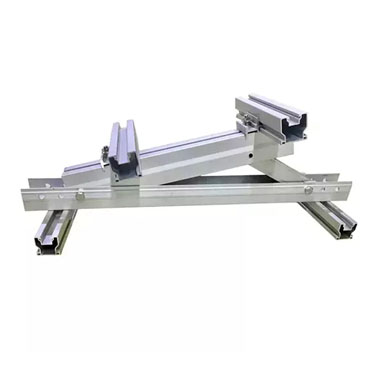

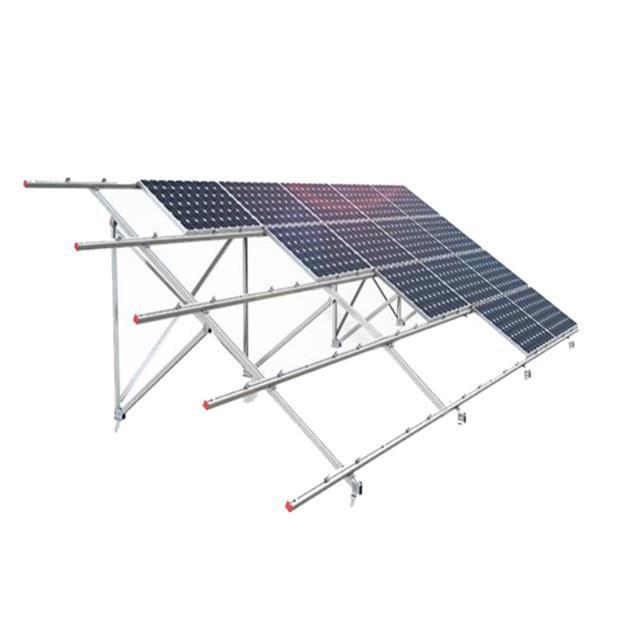

Solar Mounting System



> Customized for :Rooftop(Flat/Pitched), Ground , Carport etc

> Adjustable tile angle from 0 to 65 degree

> Tile roof: Aluminium type

> Compatible with all solar modules

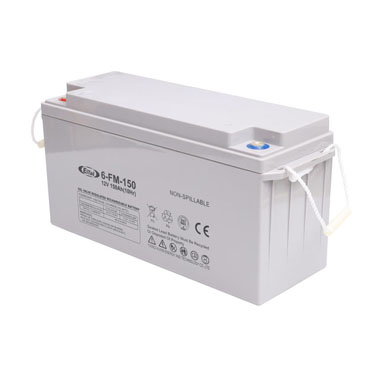

Lead Acid GEL/AGM Battery


>Capacity(kWh):>0.4/0.8/1.2/1.6/2 Nominal

>Voltage(Vdc): 2 Nominal

>Capacity(AH): >200/400/600/800/1000 Voltage

>Range(Vdc): 2.27 V~2.30 V >Depth of Discharge: 70%



Solar system solar system



Product packaging :

Packing Details:Carton Packing

Delivery Details:12-30 days after place the order
