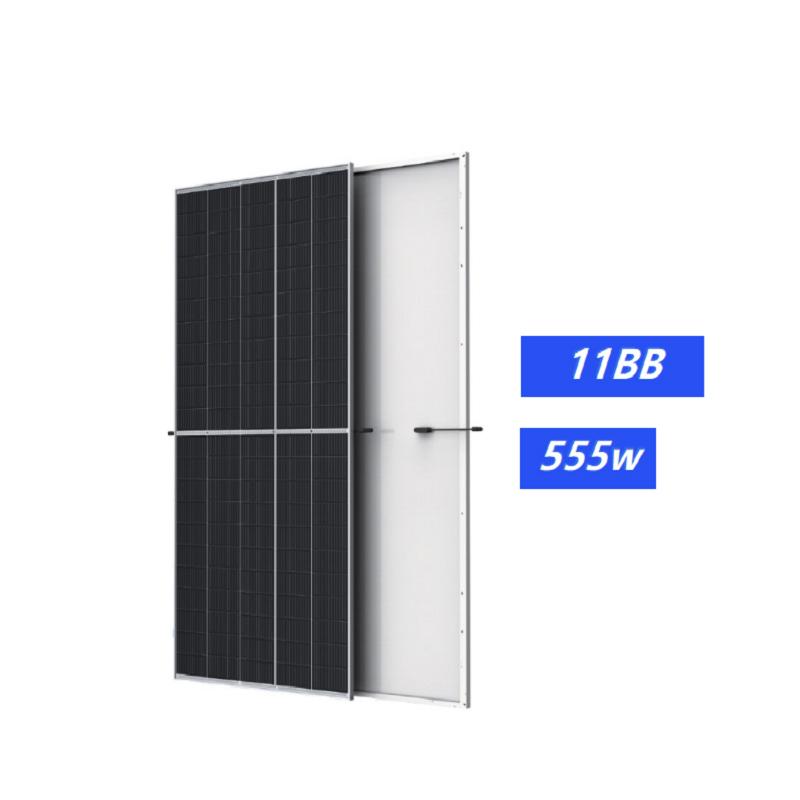

PERC Photovoltaic 530W Panels Half Cut 555W Solar panel

Highest Efficiency Photovoltaic panels 555W PERC 144 Cell 10BB Half Cut Waterproof 530w Solar Panel
  • Item NO.:

    ETHM 530-555M
  • Payment:

    TT/LC/Credit Card etc
  • Product Origin:

    China
  • Color:

    Sliver/Black Frame
  • Shipping Port:

    Xiamen/Ningbo/Shanghai Port
  • Lead Time:

    10-15 Working Days
  • Product Detail


Solar Panel : All certifications we can procide


Product Detail:

Module Type
530
535
540
545
550
555
Maximum Power- Pmax(W)
530
535
540
545
550
555
Maximum Power Voltage- Vmpp(V)
40.74
40.88
41.01
41.15
41.28
41.41
Maximum Power Current- Impp(A)
13.01
13.09
13.17
13.24
13.32
13.40
Open Circuit Voltage- Voc(V)
49.26
49.40
49.53
49.67
49.80
49.93
Short Circuit Current- Isc(A)
13.69
13.77
13.85
13.93
14.01
14.09
Tolerance- (W)
0- +5
0- +5
0- +5
0- +5
0- +5
0- +5
Module Efficiency- (%)
20.8
21
21.2
21.3
21.5
21.7
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5 according to EN 60904-3.

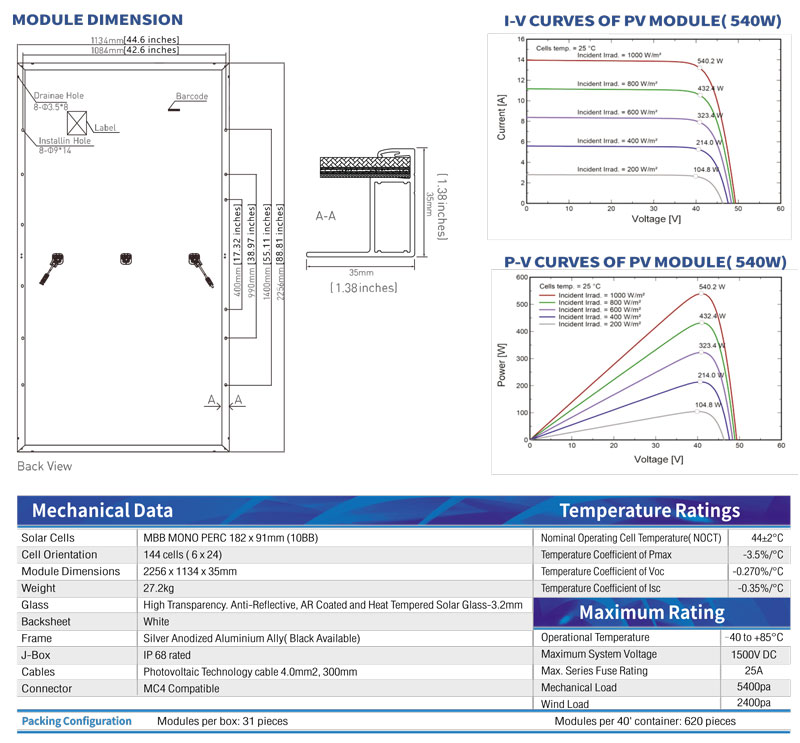

Product Dimensions:


Solar Cell

☆ High PID resistant

☆ High Efficiency PV Cells

☆ Module efficiency up to 17.2% achieved through advanced cell technology and manufacturing capabilities

☆ Color sorting ensure consistent appearance on each module


Glass

☆ Anti-reflective glass

☆ Self-cleaning function

☆ Module efficiency is increased by 2%

☆ translucency of normal luminance is increased by 2%


Frame

☆ Boost bearing capability and prolong service life

☆ Silvery or black are optional

☆ Serrated-clip design tensile strength



Product Display :

Solar Energy Panel For Home
