Solar PV Module Photovoltaic Panel Mono
60cells solar panel MONO 300 w solar panel price 300watt 310watt 320watt 325watt panel roof system use
Item NO.:
MONO 300WPayment:
T/T, L/C, Visa/ MasterCard, etc.Product Origin:
ChinaShipping Port:
Xiamen, Ningbo, Shenzhen, etc.Lead Time：
10days-
Certificate
CE, ISO, TUV, INMETRO -
Size:
1956*992*40mm -
Warranty:
10years -
Power range:
MONO 300-325W
- Product Detail

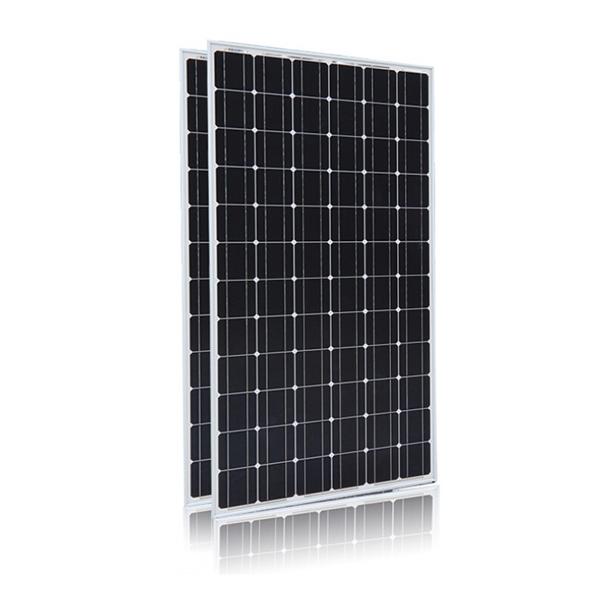

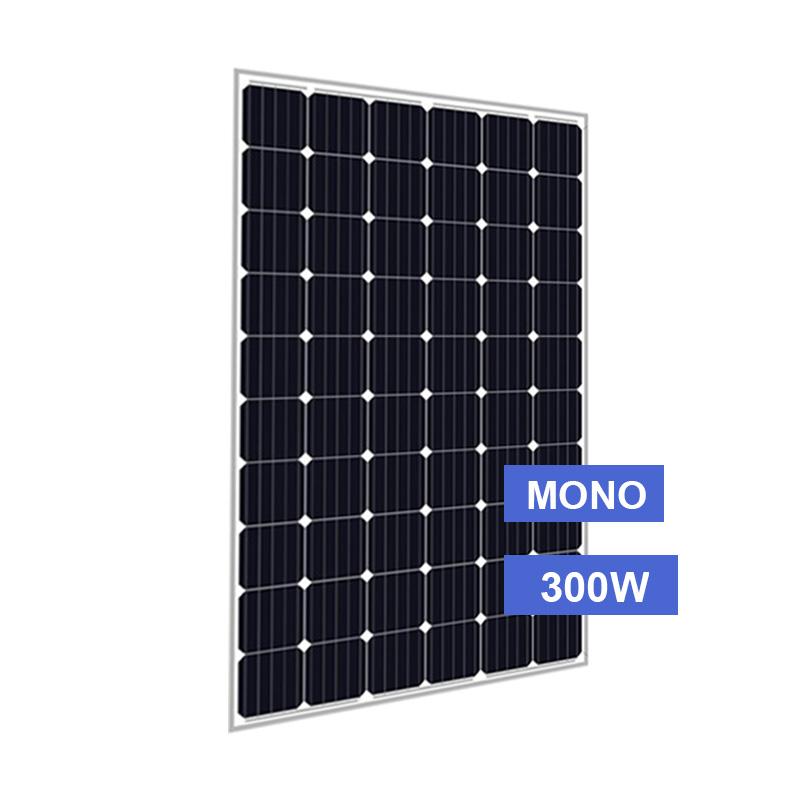

Solar PV Module Photovoltaic Panel Mono
60cells solar panel MONO 300watt 310watt 320watt 325watt panel roof system use
Specifications :
|
Module |
ETM285-320W(60) | |||||||
| Maximum Power Pmax | W | 285 | 290 | 295 | 300 | 305 | 310 | 320 |
| Maximum Power Voltage(Vmp) | V | 31.65 | 31.8 | 31.95 | 32.1 | 32.25 | 32.4 | 32.7 |
| Maximum Power Current(Imp) | A | 9 | 9.12 | 9.23 | 9.35 | 9.46 | 9.57 | 9.79 |
| Open Circuit Voltage(Voc) | V | 37.98 | 38.16 | 38.34 | 38.52 | 38.7 | 38.88 | 39.24 |
| Short Circuit Current(Isc) | A | 9.45 | 9.58 | 9.69 | 9.82 | 9.93 | 10.05 | 10.28 |
| Cell Efficiency | % | 19.91 | 20.26 | 20.61 | 20.97 | 21.31 | 21.66 | 22.36 |
| Module Efficiency | % | 17.7 | 18.01 | 18.32 | 18.63 | 18.94 | 19.25 | 19.87 |
Solar Cell
☆ Anti PID
☆ 19.78% High Efficiency PV Cells
☆ Appearance Consistency
☆ Color sorting ensure consistent appearance on each module
Glass
☆ Anti-reflective glass
☆ Self-cleaning function
☆ Module efficiency is increased by 3%
☆ Service life is as long as 25 years (30 years optional)
Frame
☆ Stock-size
☆ Silvery and black
☆ thickness 30/35/40/45/50mm
☆ stress test
Junction box
☆ Conventional standalone edition and
engineering custom edition
☆ Quality diode ensures module running safety
☆ IP67 protection level
☆ Heat dissipation
☆ Long service life

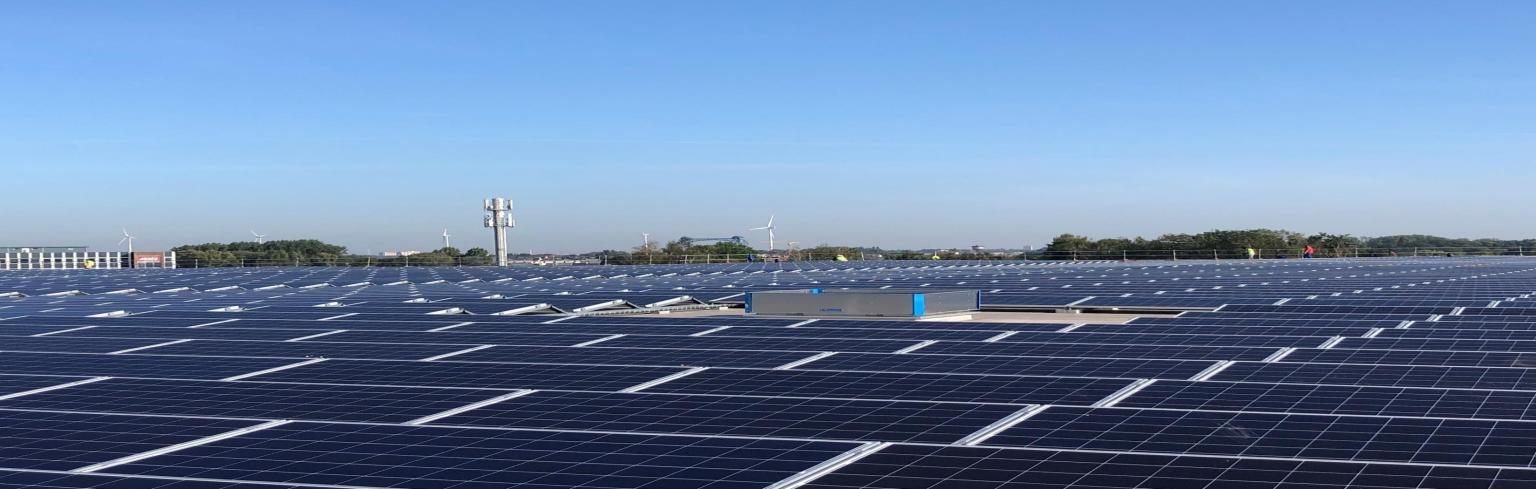

Product Case :
Package :
- Corrgurate paper box with pallet/ wooden box
- 26pcs per pallet/ customized wooden box size
- 260pcs per 20ft, 624pcs per 40hq
Delivery way :
Recommend by SEA/ AIR/ RAILROAD/ ROAD
