Polycrystalline Half Cell Solar Panel PV Module

High Efficiency Module with half cell technology 144cells POLY PERC 340watt 345watt 350watt 355watt 360watt, size 2000 * 992 * 40 mm
  • Item NO.:

    ETHP340-360W
  • Order(MOQ):

    100
  • Payment:

    pay
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    25 Days
  • Certificate

    CE
  • Size:

    2000*992*40mm
  • Product Detail

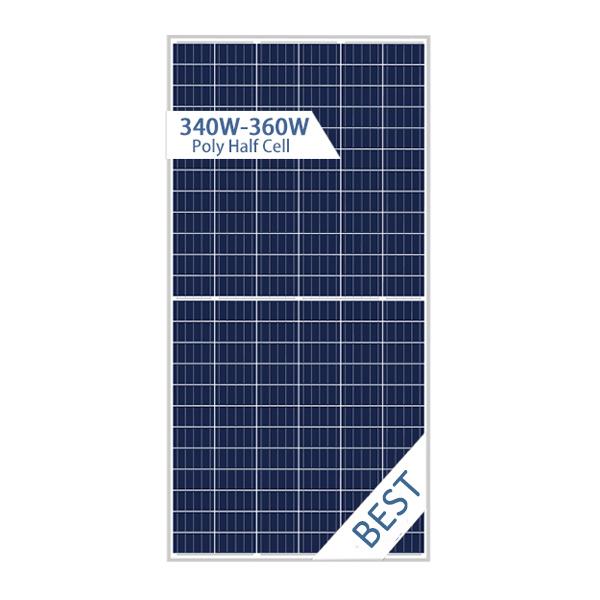

Polycrystalline Half Cell Solar Panel PV Module

 Polycrystalline Half Cell 340w 345w 350w 355w 360w 144cells Solar Panel PV Module All Scale



Product Description :


Place of Origin:

China

Brand Name:

         mailely

Model Number:

340-360W

Type:

Half Cell, Half Cell Solar Panel

Size:

2000*992*40mm

Panel Efficiency:

17.2-18.2%

Certificate:

CE, CE,IEC61215,IEC61730-1/2

Warranty:

30year

Solar cell: Polycrystalline

Szie of cells:

144cells( 6*24)

Tolerance:

0+3%

Operational Temperature:

-40~+80°C

Max. Series Fuse Rating:

20A

Junction Box(protection degree):

≥IP68

Max System Open Circuit Voltage:

47V

Weight:

22.5kg


Solar Panel Half Cut



Parameter display :


Module
ETHP340-360W(144)
Encapsulation
Glass/EVA/Cell/EVA/Backsheet
Number of cells
144 Cells / 6*24 pcs
Maximum Power Pmax
W
340
345
350
355
360
Maximum Power Voltage(Vmp)
V
38.9
39
39.2
39.4
39.6
Maximum Power Current(Imp)
A
8.74
8.86
8.94
9.02
9.10
Open Circuit Voltage(Voc)
V
46.2
46.4
46.6
46.8
47.0
Short Circuit Current(Isc)
A
9.35
9.43
9.51
9.59
9.67
Cell Efficiency
%
17.2
17.4
17.7
17.9
18.2


Standard Test Conditions[STC]: Irradiance 1000W/m²; AM1.5; module temperature 25°C.

Measuring uncertainty of power is within ±3%.

Tolerance of Pmpp: 0~3%.

Certified in accordance with IEC61215,IEC61730-1/2.



Product Details :

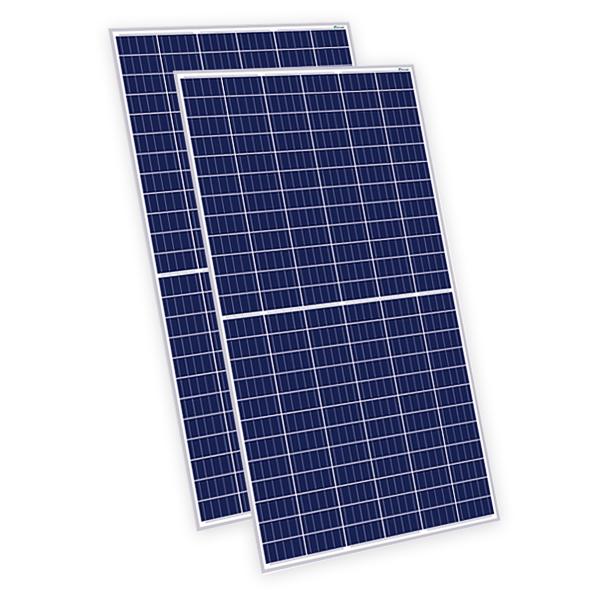

Poly Solar Panel


Solar panels

Tempered Glass


* 12% Ultra Clear Tempered Glass.

* 30% Lower Reflection

* 3.2mm thickness

* >91% Higher Transmittance

* High mechanical strength


EVA


* >91% Higher Transmittance EVA,


* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability

Solar panel material

Solar panel home

Junction box


Conventional standalone Edition and engineering custom Edition Quality diode ensures Module running safety IP67 Protection level

Heat Dissipation Long service life


Mono Half Cells


* PERC Half Cells

* Higher Power Output

* Less Shading Effect

* Appearance Consistency


Inverter with solar panel
Solar panel connectors

Frame


* Aluminum Alloy Frame

* 120N Tensile Strength Frame

* 110% Seal-lip Design Glue Injection

* Black/Silver Optional

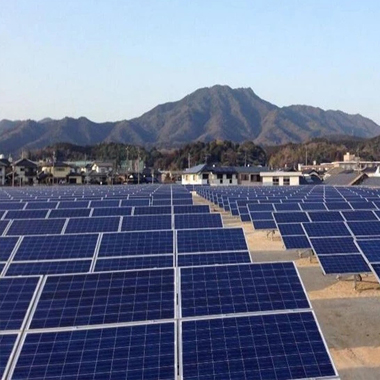

Product Application :

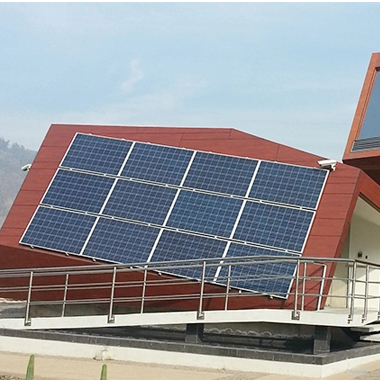

Solar panel roof
Cut High Efficiency solar Panel
